Single-Line Baghouse Filters
BETH's Single-Line baghouse filters are our most popular design, known for their proven design, modular construction that allows for seamless…
Airflow capacity
Up to 320,000 Am³/h
Residual dust
< 10 mg/m³
Filter area
Up to 3,200 m²
Pressure rating
±14,000 Pa
Product Overview
Engineered for continuous duty.
BETH's Single-Line baghouse filters are our most popular design, known for their proven design, modular construction that allows for seamless customization and future expandability. These high adaptable filters are perfectly suited to meet most application demands.
Our standard Single-Line Baghouse series offers filter areas ranging from 10 to 3200 m2 (107 to 34,400 sqft), with options for even larger filter areas if needed. Whatever your requirements are, BETH delivers flexible, scalable air filtration solutions.
Key features
- Standardized units covering a wide range in airflow, from approx. 1000 Am3/h up to 320000 Am3/h (590 ACFM – 188000 ACFM)
- Achieve ultra-low emissions with consistently delivering residual dust levels below 10 mg/m³ (0.0044 grain/ft³). In suitable applications, options are available for achieving less than 5 mg/m3
- Unmatched customization with nearly limitless options to meet your specific needs
- Designed for pressure applications up to ±5,000 Pa in standard units
- Explosion safety with our basic models built and certified for dust explosion class ST1 (KStmax = 200 bar*m/s, Pmax = 9.0 bar)
- BETHpulse models withstand operational pressures up to ±14,000 Pa
Specifications
At a glance.
Standard series figures. Every BETH system is sized and configured to the individual application.
- Airflow capacity
- Up to 320,000 Am³/h
- Filter area
- Up to 3,200 m²
- Residual dust
- < 10 mg/m³
- Pressure rating
- ±14,000 Pa
- Explosion class
- Certified ST2+

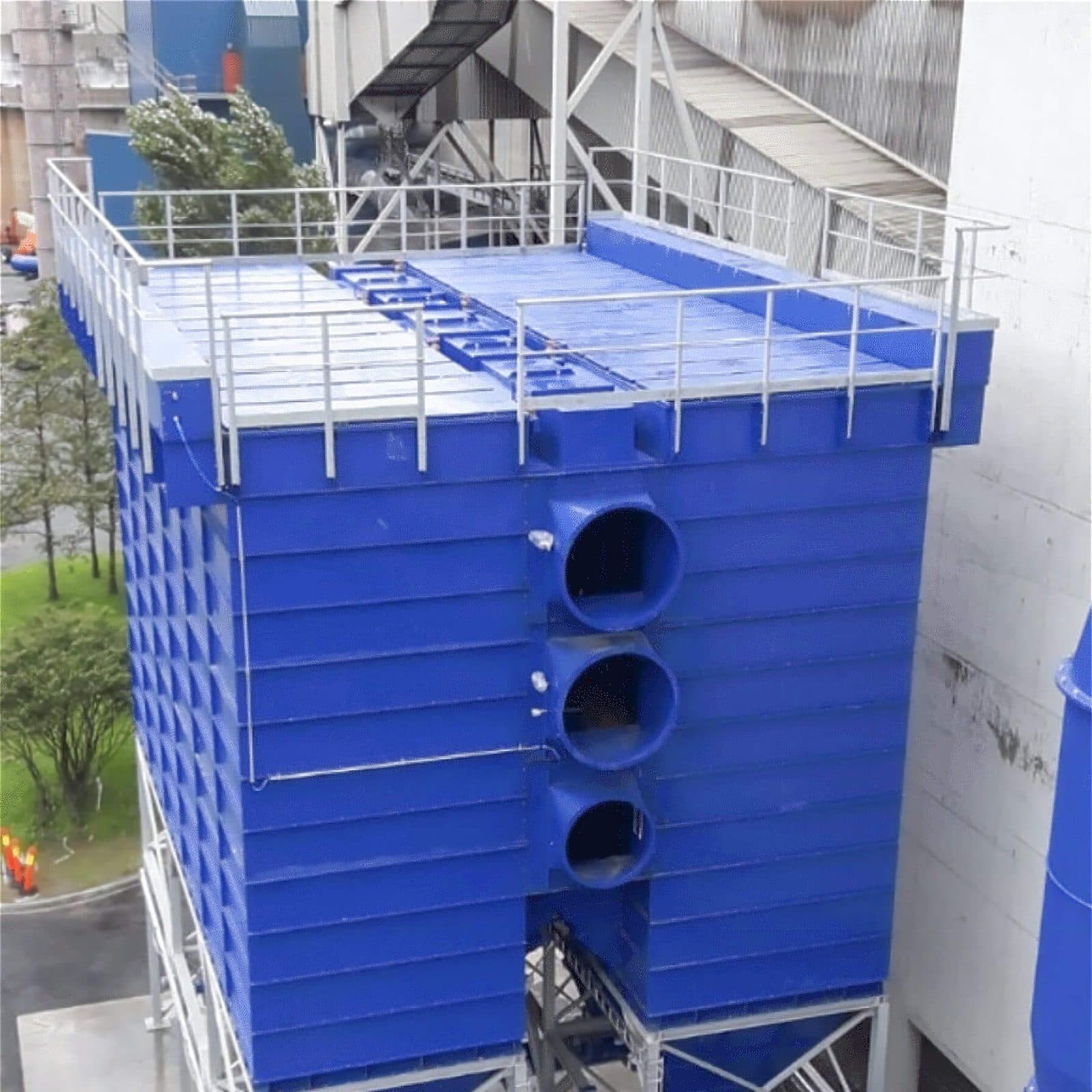

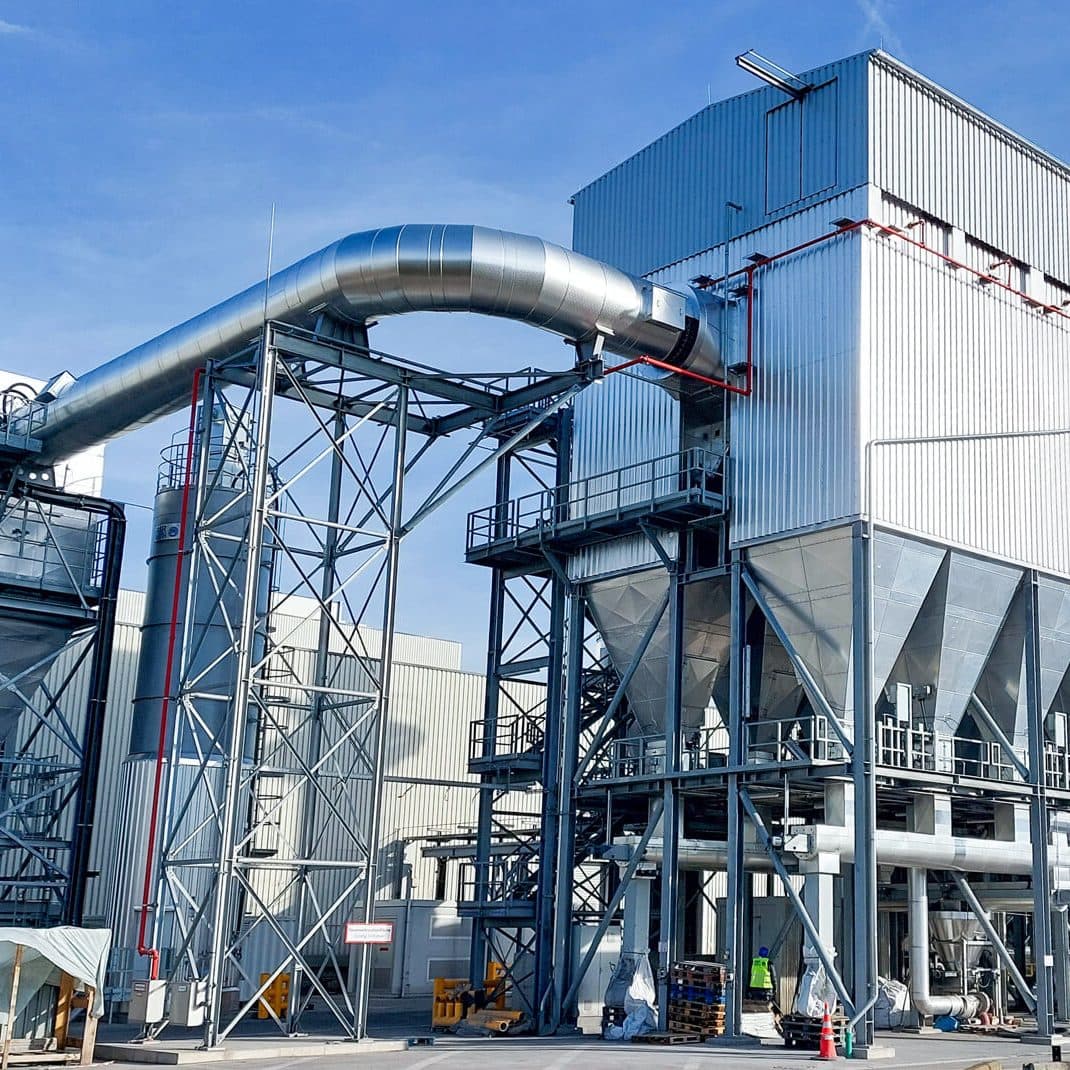

Gallery
In the field.
