Double-Line Baghouse Filters
BETH's Double-Line Baghouse is engineered for industrial applications requiring high airflow, delivering exceptional performance with maximum uptime…
Airflow capacity
Up to 1,500,000 Am³/h
Residual dust
< 10 mg/m³
Filter area
Up to 6,400 m²
Pressure rating
±14,000 Pa
Product Overview
Engineered for continuous duty.
BETH's Double-Line Baghouse is engineered for industrial applications requiring high airflow, delivering exceptional performance with maximum uptime and versatile service options.
Our standard Double-Line Baghouse series offers filter areas ranging from 1344 to 6400 m2 (14400 to 68,800 sqft), with options for even larger filter areas if needed. Whatever your requirements are, BETH delivers flexible, scalable air filtration solutions.
Key features
- Standardized units covering a wide range in airflow, from approx. 134,000 Am3/h up to 1,500,000 Am3/h (78,800 ACFM – 881,000 ACFM)
- Achieve ultra-low emissions with consistently delivering residual dust levels below 10 mg/m³ (0.0044 grain/ft³). In suitable applications, options are available for achieving less than 5 mg/m3
- High level of customization with many options to meet your specific needs
- Ultra-high availability and service flexibility due offline mode bag cleaning
- Designed for pressure applications up to ±5,000 Pa in standard units
- Explosion safety with our basic models built and certified for dust explosion class ST1 (KStmax = 200 bar*m/s, Pmax = 9.0 bar)
Specifications
At a glance.
Standard series figures. Every BETH system is sized and configured to the individual application.
- Airflow capacity
- Up to 1,500,000 Am³/h
- Filter area
- Up to 6,400 m²
- Residual dust
- < 10 mg/m³
- Pressure rating
- ±14,000 Pa
- Explosion class
- Certified ST2+

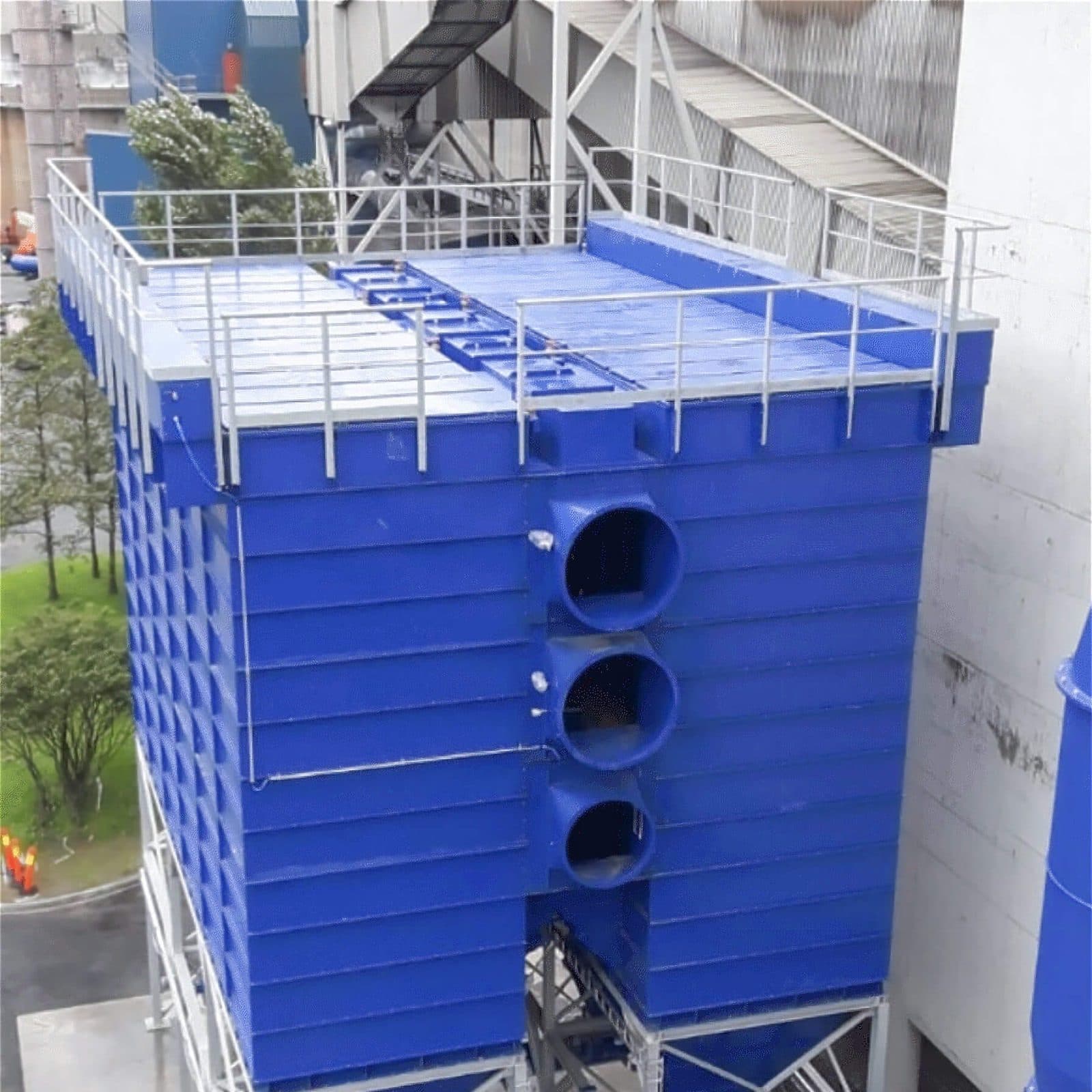

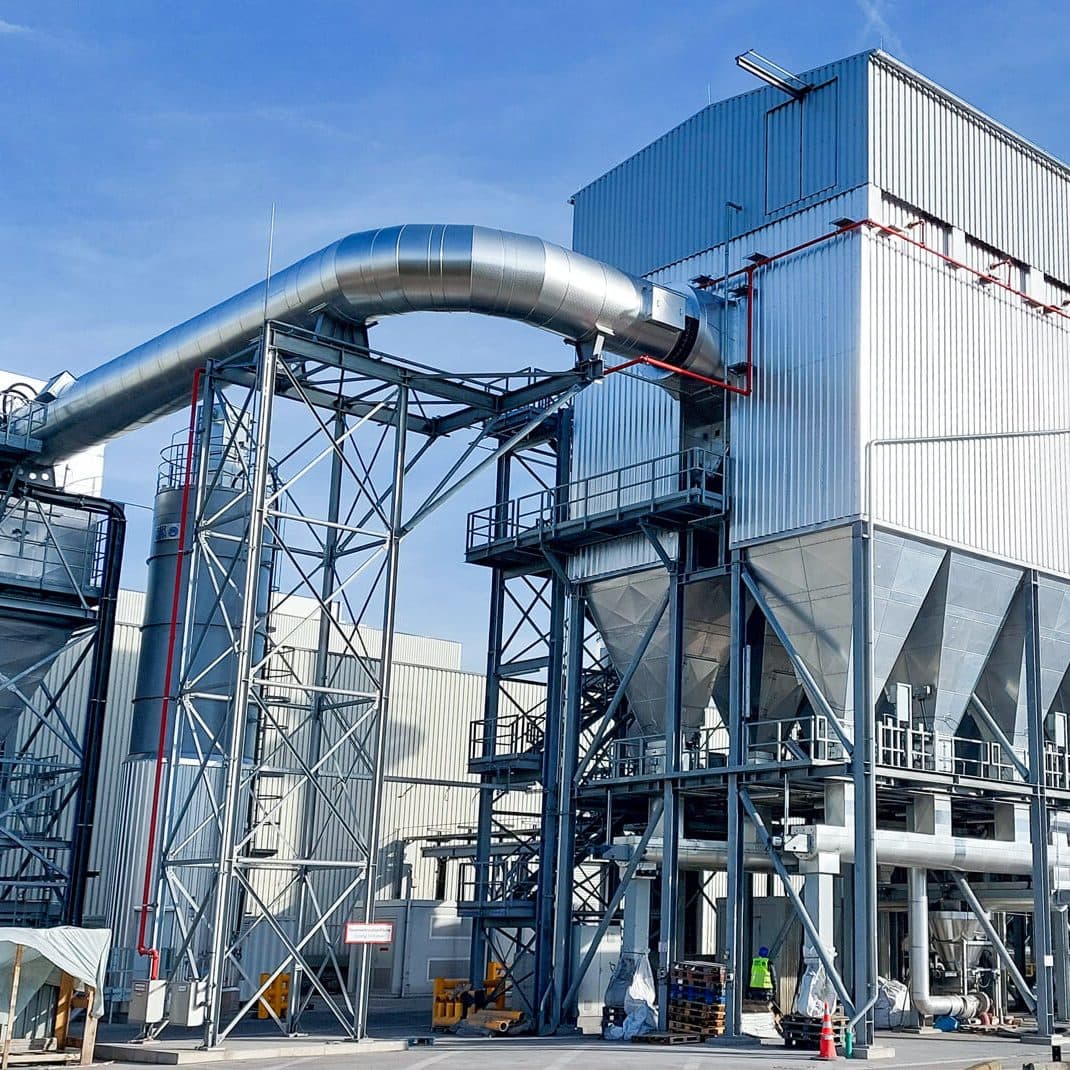

Gallery
In the field.
