Wet Electrostatic Precipitators

Talk to an Engineer

Airflow capacity

Up to 150,000 Am³/h

Gas temperature

Up to 75 °C

Separation efficiency

Up to 99 %

Operating voltage

78–135 kV

Product Overview

Engineered for continuous duty.

Wet Electrostatic Precipitators

The Range

3 configurations,one engineering standard.

Wet Electrostatic PrecipitatorsWet Electrostatic PrecipitatorsWet Electrostatic PrecipitatorsWet Electrostatic Precipitators01 / 04
01

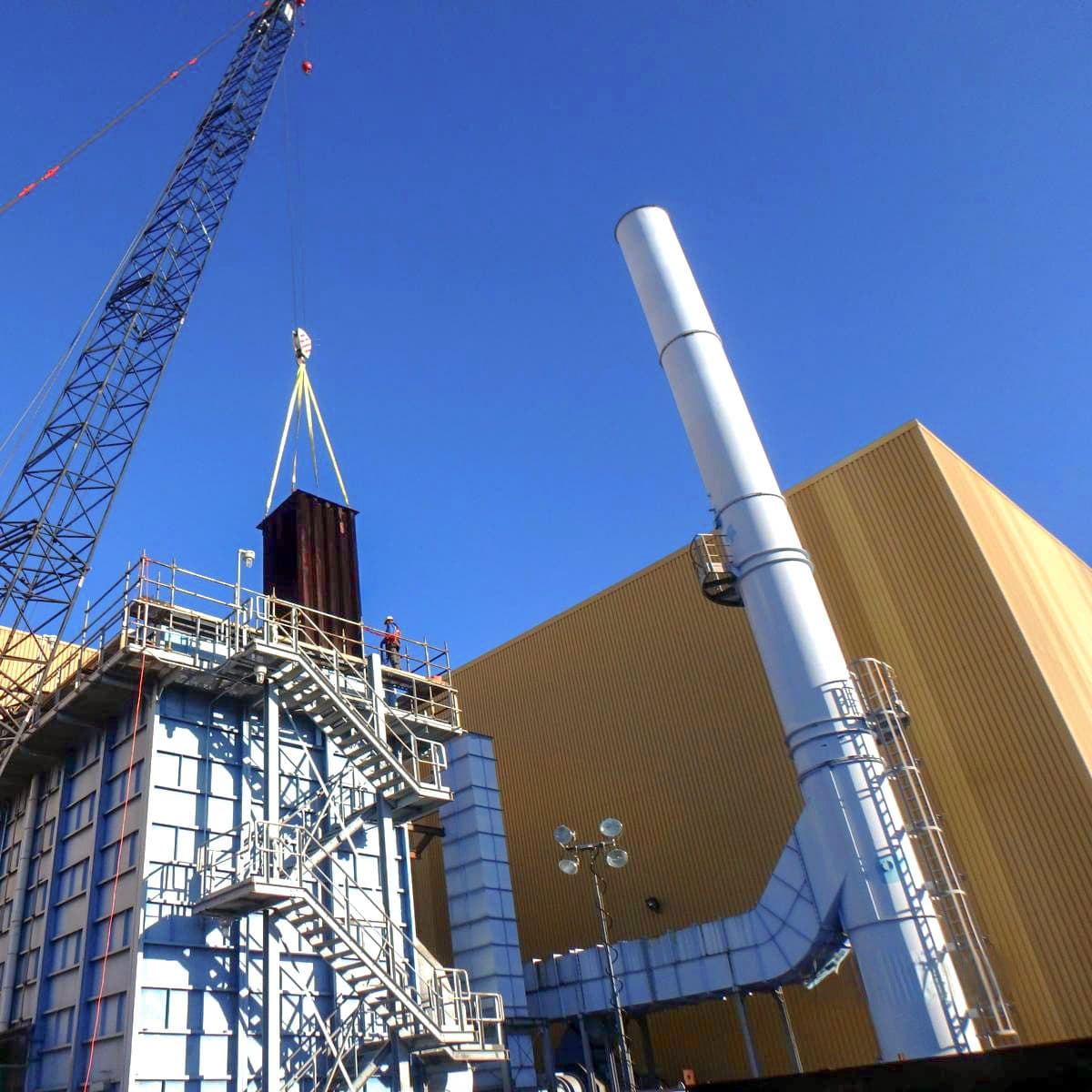

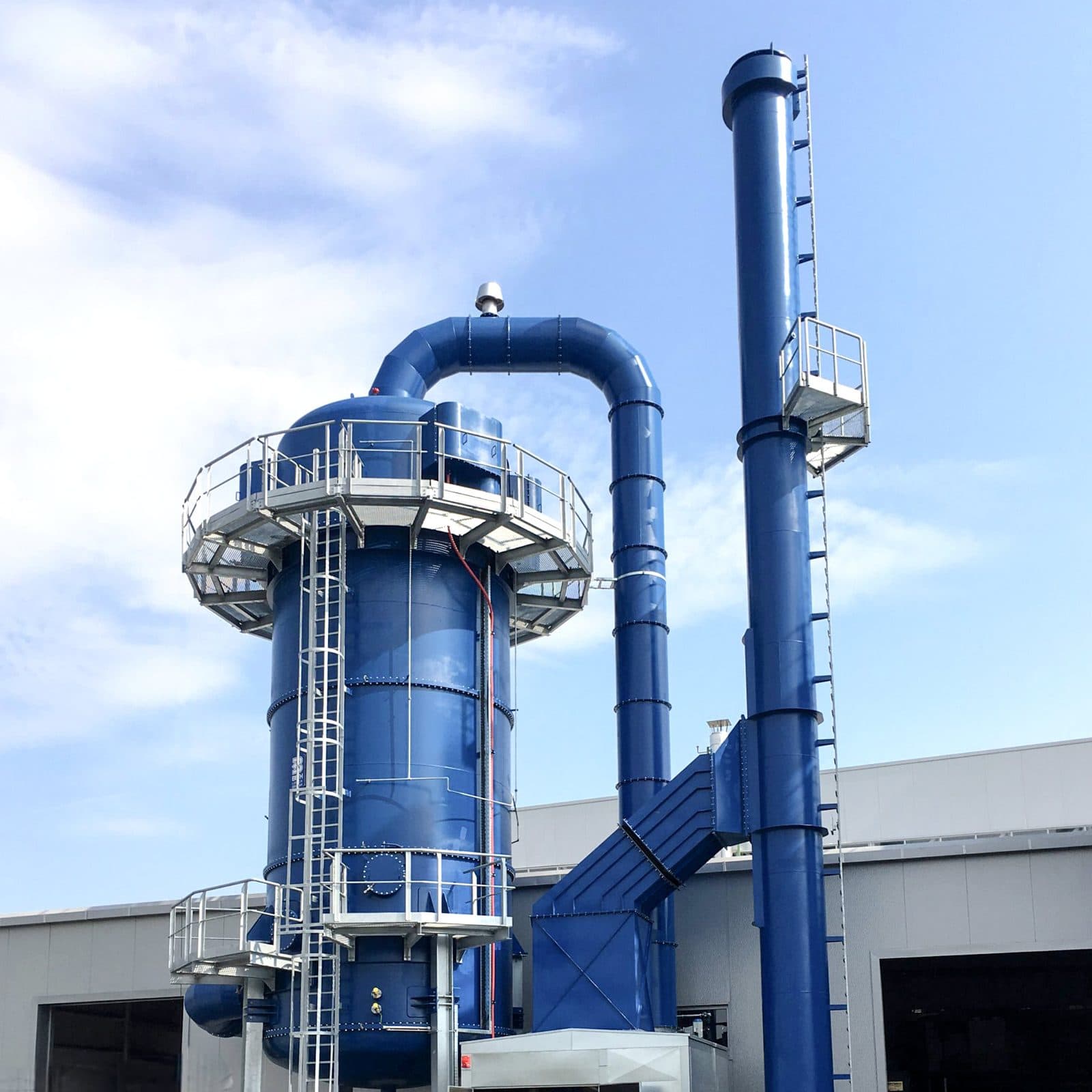

Wet Electrostatic Precipitators

Introducing BETH WET Electrostatic Precipitators – the perfect solution for processes where dry separation isn't feasible due to the specific characteristics of dust or gases. Renowned for their unmatched reliability, durability, and exceptional separation performance over many years, they are the ideal choice for capturing fine water droplets coated with dust, aerosols, and exhaust gases containing tar and oil.

  • Versatile Application Range
  • Ultra Low Maintenance with Optimal Material Selection
  • Exceptional Ultra-Fine Particle Separation
  • Energy Efficient Design
Tar Electrostatic PrecipitatorTar Electrostatic PrecipitatorTar Electrostatic Precipitator01 / 03
02

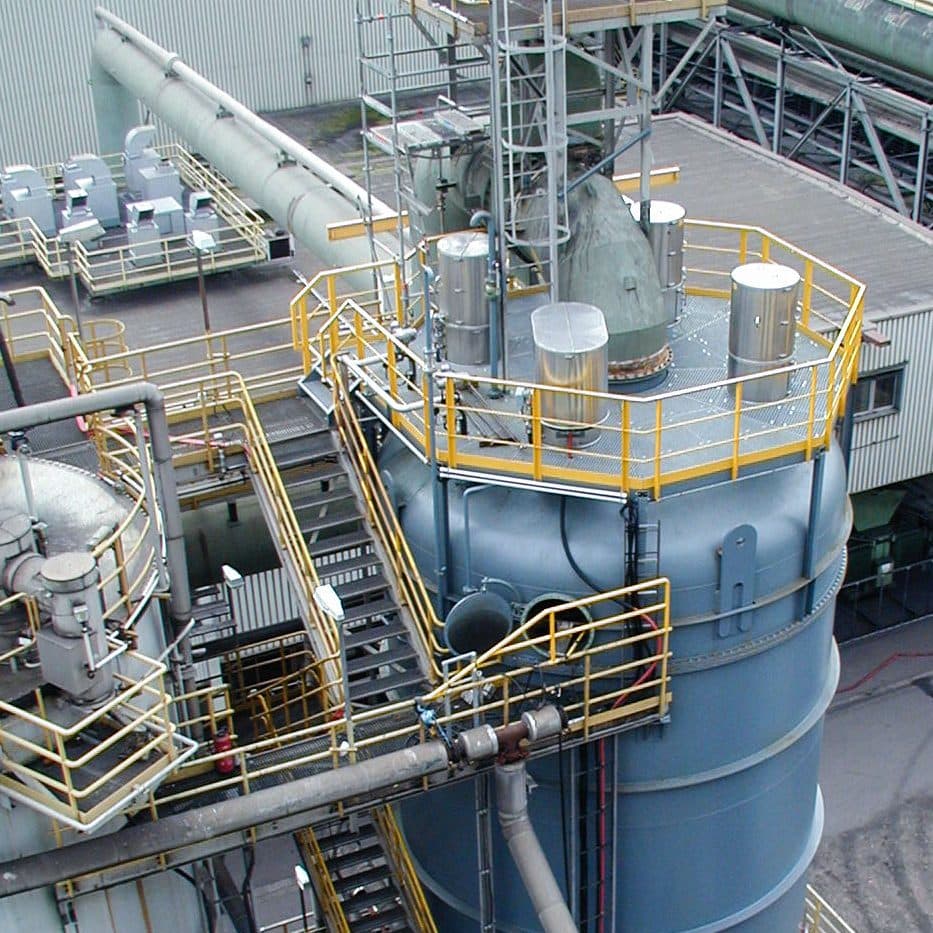

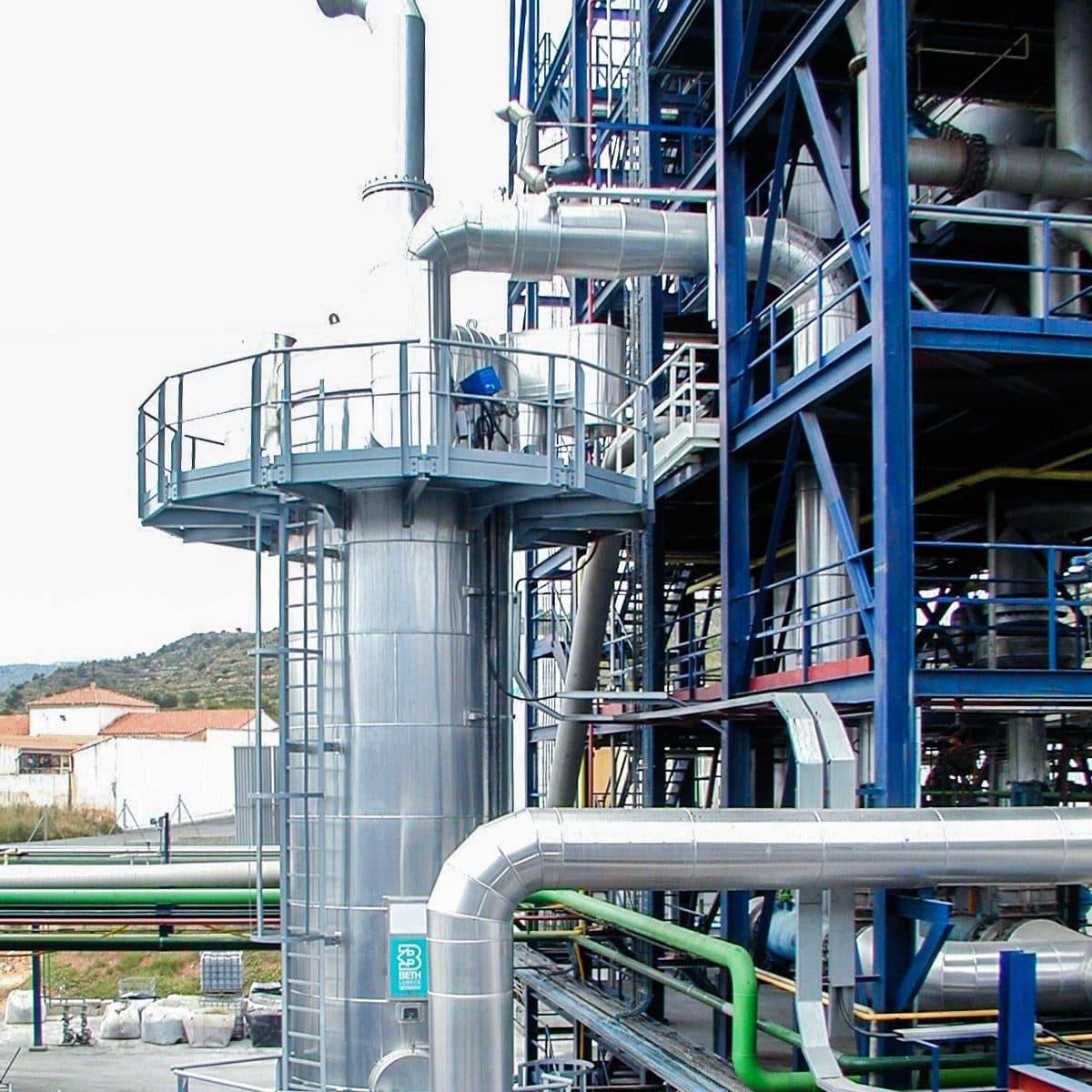

Tar Electrostatic Precipitator

For gas flows ranging from 500 to over 100,000 m³/h (300 to 59,900 cfm), BETH proudly presents the BETH TAR Electrostatic Precipitator. Engineered specifically for use in coking plants and gasification facilities, the Tar ESP provides reliable protection for downstream gas engines and turbines. Based on the proven design of the BETH Wet ESP, the Tar ESP typically operates without the need for a spraying and flushing water zone, offering a streamlined and efficient solution for your industrial needs.

  • Versatile Application Range
  • Ultra Low Maintenance with Optimal Material Selection
  • High Filtration Efficiency
  • Energy Efficient Design
Oil-Mist Electrostatic PrecipitatorOil-Mist Electrostatic Precipitator01 / 02
03

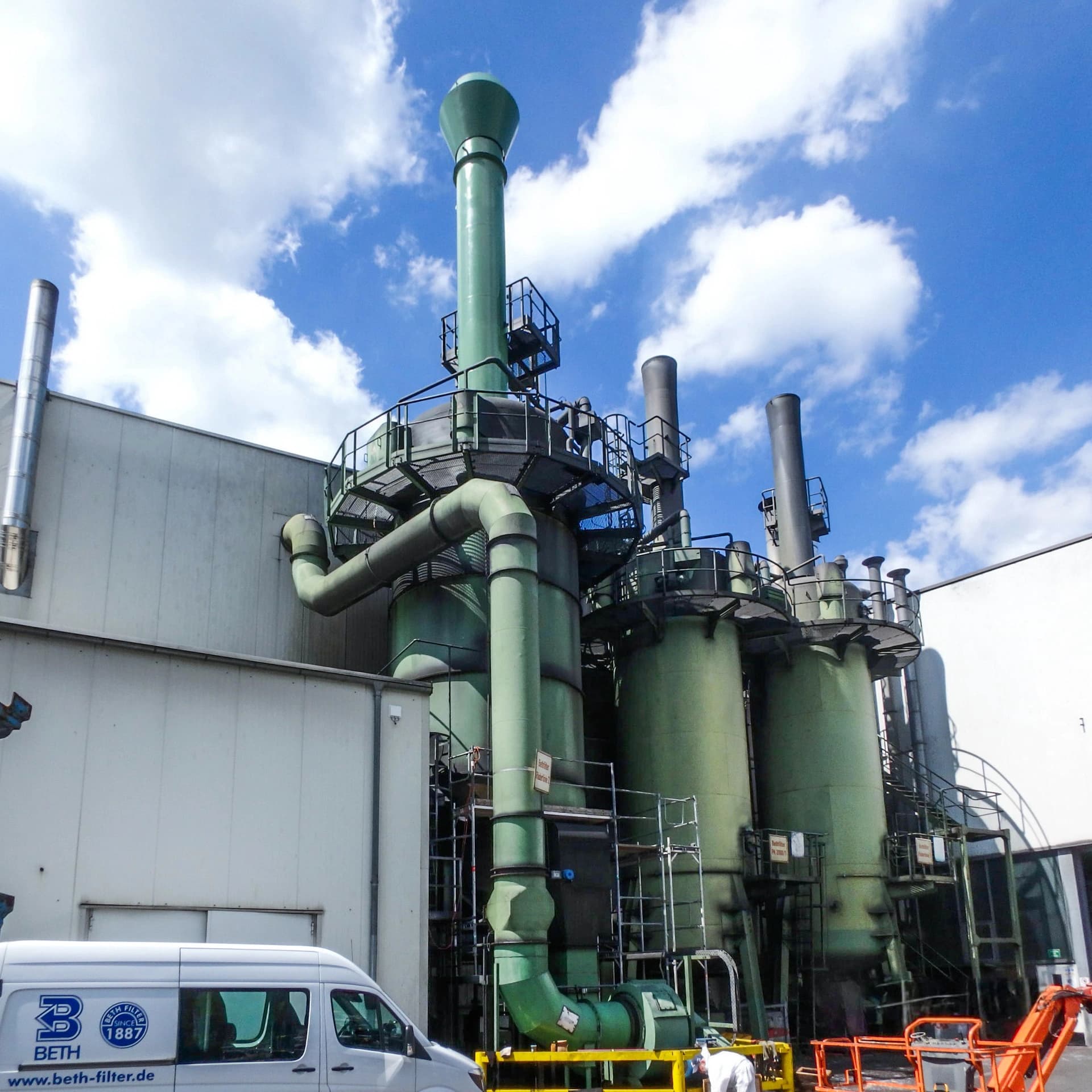

Oil-Mist Electrostatic Precipitator

Introducing the BETH Oil Mist Electrostatic Precipitator – engineered for volume flows ranging from 1,000 to over 100,000 m³/h. Built on the proven technology of the BETH Wet ESP, this advanced system is designed specifically for oil mist applications, typically without the need for a mist and cleaning water zone. Trust BETH for efficient and reliable air purification solutions tailored to your industrial needs.

  • Versatile Application Range
  • Ultra Low Maintenance with Optimal Material Selection
  • Exceptional Ultra-Fine Particle Separation
  • Energy Efficient Design

Specifications

At a glance.

Standard series figures. Every BETH system is sized and configured to the individual application.

Airflow capacity
Up to 150,000 Am³/h
Gas temperature
Up to 75 °C
Pressure drop
< 250 Pa
Operating voltage
78–135 kV
Separation efficiency
Up to 99 %
Tar reduction
50 g → 10 mg/Nm³
